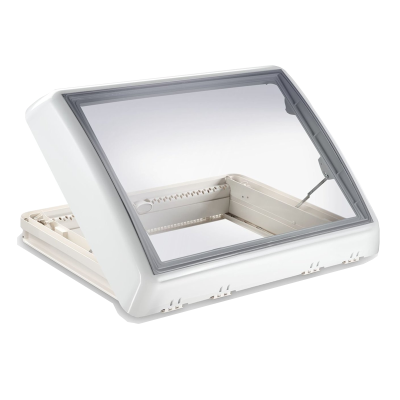

Dometic Midi Heki 700x500 Lever rooflight without forced ventilation

This Dometic Midi Heki Style 700x500mm is an advanced version of Dometic's mid-sized roof windows. It features a newly designed dome with double acrylic glazing for enhanced insulation and better visual integration. With its improved design, the Midi Heki Style is both easier to clean and generates up to 20 % (3 dB) less noise thanks to improved aerodynamics. An inner frame with separately adjustable darkening blind and fly screen conveniently keep sunlight and insects out of the vehicle.

Features:

• Separately adjustable darkening and fly screens
• Well insulated dome with double acrylic glazing
• Improved aerodynamics reduce by 20 %
• Hinge and lock integrated into frame for improved safety and mechanical reliability
• Opens to three positions: fully open, half-open and bad-weather position
• With or without forced ventilation
• Modern design for stylish interior and exterior appearance

Dimensions and technical specification:

• Dimensions product depth 617 mm
• Dimensions product width 846 mm
• Net weight 8,2 kg
• Dimensions ordered width 700 mm
• Dimensions ordered height 500 mm
• Dimensions opening width 585 mm
• Dimensions opening height 404 mm
• Standard mount. material thickness 1 min 30 mm
• Standard mount. material thickness 1 max 34 mm
• Possible material thickness 1 min 25 mm
• Possible material thickness 1 max 29 mm
• Cut out width 500.00 mm
