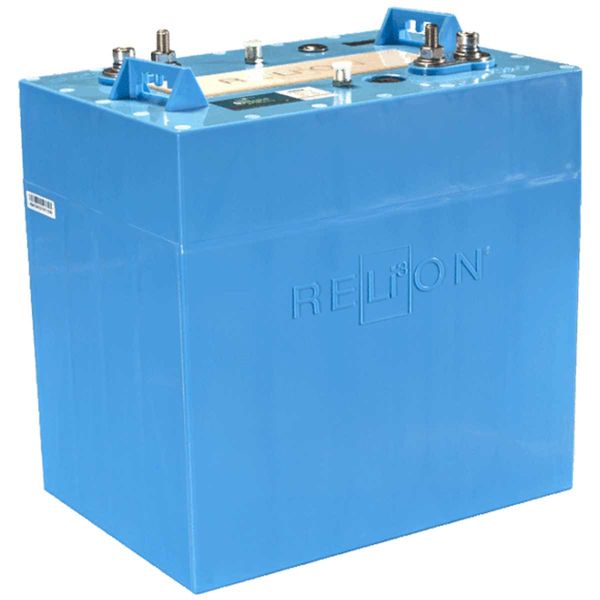

RELiON InSight Lifepo4 Lithium Ion Battery (48V / 30Ah / GC2 001)

RELiON InSight 48V 30Ah Lithium Golf Cart BatteryRELiON's InSight Series 48V lithium iron phosphate battery is a GC2 sized drop-in replacement battery that delivers high-quality performance, power and precision. This 48V 30 Ah battery was designed specifically for golf cars, utility vehicles, LSVs and AGVs.InSight batteries are drop-in ready and easy to install, just connect them in parallel for the capacity you need. No need to modify trays, no complicated connections, and no heavy lifting. RELiON's recommend using Battery Spacers to fill the empty battery spots so you can use the existing battery hold-downs that come in your vehicle. If you do not use Battery Spacers, please ensure your InSight batteries are securely held down.They are also scalable, so you can provide increased power and energy as needed. InSight batteries are connected in parallel which means you have the freedom and flexibility to use the right amount of batteries for your equipment, typically two to six batteries.InSight batteries also feature an elegant BMS that provides precision balancing within a battery and between batteries in a parallel system without the need for charging batteries individually. In addition, RELiON's proprietary software determines and manages regenerative currents - unlike any other battery solution - avoiding unnecessary battery disconnects.With InSight, you get unmatched quality and performance, from the inside out. ItÕs the only lithium battery like it on the market today!Functional SpecificationsCell Chemistry: LiFePO4Cell Type: PrismaticSpecific Energy: 128Wh/kgCharge Efficiency: 99%Impedance (50% SOC, 1kHz): <150m½Cycles @ 80% DOD: >3500Parallel Connections: Yes (unlimited)Series Connections: No (max 48V system)Mechanical SpecificationsBCI Size: GC2/GC8Handles: MoldedCase Flame Rating: UL94 V-0Discharge SpecificationsContinuous Discharge Current: 100APeak Discharge Current: 200A - 15 secPeak Discharge Current: 400A - 30 msecShort Circuit Protection: 560A - 366 _secProtection Recover: AutomaticLow Voltage Disconnect: 40V - 5 sec (2.5vpc)Low Voltage Reconnect: AutomaticSelf-Discharge per Month @ 25¡C in OFF mode: 2.80%Charge SpecificationsContinuous Charge Current: ² 60ADisconnect Charge Current: 65A - 5 secRecommended Charge Voltage: 55.2V maxFloat Voltage: 54.4VHigh Voltage Disconnect: 59.2V (3.7vpc) (4 sec)High Voltage Reconnect: AutomaticTemperature Compensation: NoneEnvironmental SpecificationsCharge Temperature: 32¡F to 131¡F (0¡C to 55¡C)Discharge Temperature: -22¡F to 149¡F (-30¡C to 65¡C)Operating Humidity: <90% RHStorage Temperature: -4¡F to 95¡F (-20¡C to 35¡C)Storage Humidity: 25 to 85% RHApplications: Golf

Key Features

Unlimited Parallel ConnectionsIntelligent battery-to-battery balancingAdditive continuous & peak currentsScale as neededLow Temperature Operation down to -20¡C (-4¡F)Strategically Located Heatsink Design, Unique passive cooling, Prevents over-heatingDual M8 Terminals (insert & stud)LED Indicator - Provides State of Charge (SOC)Unique BMS DesignMicrocontroller-based designIntuitive softwareSolid State Switch for ultra-fast response timesHigh-resolution internal measurementsNon-volatile historical dataCANbus communicationSleep mode capability
